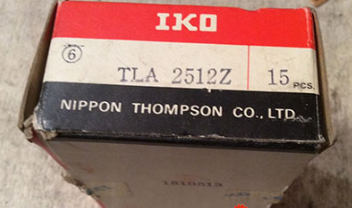

IKO Number: TLA 2512Z

Mass (Ref.): 19.7 g

Assembled inner ring:

Fw: 25 mm

D: 32 mm

C: 12 mm

Shaft dia. h6max.: 25 mm

Shaft dia. h6min.: 24.987 mm

Housing bore dia. N7max.: 31.992 mm

Housing bore dia. N7min.: 31.967 mm

Dynamic, C: 9.44 kN

Static, C0: 13.9 kN

Allowable rotational speed: 15000 rpm
